Most PCB drilling guides tell you the difference between a via and a through-hole and stop there. That is not the information that actually determines whether your board passes first-article inspection. What decides that is whether your minimum hole size is realistic for your board thickness and copper weight, whether your aspect ratio lets plating chemistry actually reach the bottom of the hole, and whether your fab's positional accuracy can hold registration through a 20-layer stack-up. This guide covers PCB drilling from a process engineer's desk, including the hole-size constraints tied to board thickness and copper weight that most articles never quantify, and a defect-prevention framework you can apply directly to your next fabrication drawing.

What PCB Drilling Actually Does, and Why It Is the Highest-Risk Step in Fabrication

PCB drilling creates every hole in a board: the vias that connect layers, the through-holes that seat component leads, and the mechanical holes that mount the board to a chassis. It happens after lamination, which means every hole is drilled through cured copper, resin, and glass fiber simultaneously, three materials with completely different hardness and thermal behavior.

That combination is why drilling causes a disproportionate share of PCB scrap. A design error in copper routing can often be reworked or caught before fabrication. A drilling defect, resin smear inside a via, a cracked barrel, a misregistered hole in layer six of a twelve-layer stack, is usually only caught after plating, cross-section, or electrical test, when the board is already most of the way through its cost.

PCB Drilling Methods: Mechanical vs Laser Drilling

There are two production drilling methods in use today, and the choice between them is not about which is better; it is about which hole size and depth you actually need.

Mechanical drilling uses a rotating carbide drill bit, typically spinning between 60,000 and 160,000 RPM, to physically cut through the panel. It is the default method for standard through-holes and remains responsible for the large majority of holes on any given board, because it is the only method that can economically drill all the way through a thick panel.

Laser drilling uses a CO2 or UV laser to vaporize material without physical contact, and it is used almost exclusively for microvias in HDI designs. It cannot economically drill through a full board thickness; its practical range is blind vias reaching one or two layers deep.

PCB Hole Types You Need to Specify Correctly

Getting the hole taxonomy right on your fabrication drawing prevents more rework than any other single line item.

By electrical function:

• Plated through-hole (PTH): the hole wall is copper-plated and carries electrical connection between layers.

• Non-plated through-hole (NPTH): the wall is bare, used for mounting, tooling, or mechanical fastening only. Mixing these up on a drill file, sending an NPTH as if it needs plating, is one of the most common and costly documentation errors on a fab drawing.

By depth:

• Through-hole: passes through the entire board.

• Blind via: starts at an outer layer and stops at an internal layer without passing through.

• Buried via: connects internal layers only and never reaches either outer surface.

• Microvia: a small-diameter blind via, almost always laser-drilled, connecting adjacent layers in an HDI stack-up.

Functional holes worth knowing on a fab drawing: back-drilled holes (a controlled-depth redrill that removes an unused via stub to cut signal reflection on high-speed layers), fiducial or tooling holes (non-plated, used to register the panel through the process), and coupon holes for cross-section and impedance verification. None of these carry your signal, but getting them wrong stalls your whole panel in fabrication.

The Hole-Size Rule Nobody Puts in a Table: How Board Thickness and Copper Weight Change Your Minimum Drill Size

This is where most PCB drilling guides stop short, and it is exactly where designers lose the most time in DFM review. The minimum hole size on a spec sheet is not a fixed number. It scales with board thickness and copper weight, because the aspect ratio has to stay within a range that plating chemistry can actually fill.

As a working rule that reflects current mechanical drilling capability at a well-equipped fab: standard mechanical through-holes run from about 0.15mm up to 6.3mm in diameter, with a typical finished-hole tolerance around ±0.08mm. But three constraints override that general range in practice:

• Board thickness at or above 2.0mm: the minimum mechanical through-hole diameter increases to roughly 0.3mm. Drilling a 0.15mm hole through a 2mm-plus panel drives the aspect ratio past what standard plating baths can reliably fill, and you get thin or voided copper at the barrel midpoint.

• 2oz copper boards: once board thickness reaches 1.2mm, the minimum via size moves up to about 0.25mm, because the heavier copper plating adds proportionally more to the effective hole diameter reduction and changes how evenly current density distributes during plating.

• 3oz (heavy copper) boards: at 2.0mm thickness or above, the practical minimum via grows to roughly 0.3mm for the same reason, amplified.

If your stack-up uses heavy copper for power delivery and you are also specifying a small via for a signal escape on the same board, check this constraint before you finalize the drill table, not after your fab flags it. This is the single most common source of a DFM hold I see on heavy-copper multilayer jobs.

For microvia work, current laser drilling capability reaches down to about 0.1mm, supporting first- and second-order HDI stacked blind and buried structures, resin plug filling, and hole-wall copper plating held to roughly 18 microns or more with tight uniformity, which matters directly for BGA escape routing on dense, thin boards.

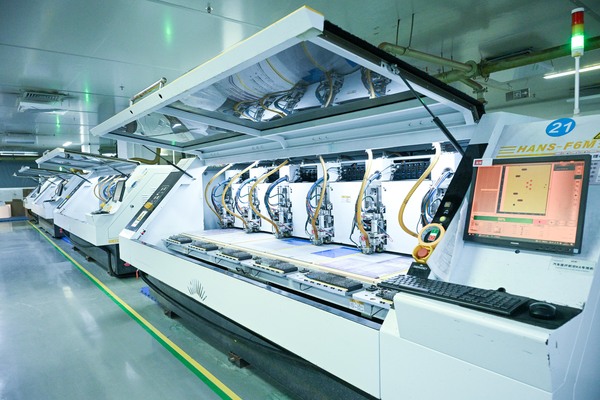

At PCBgogo, this thickness-dependent scaling is built directly into the DFM check rather than left for the designer to catch: standard mechanical drilling covers 0.15mm to 6.3mm with a ±0.08mm finished-hole tolerance, laser drilling for HDI microvias goes down to 0.1mm with resin-plugged blind and buried structures and hole-wall copper held to at least 18 microns, and the thickness and copper-weight constraints above are checked automatically against the submitted stack-up before production starts.

Aspect Ratio and Drill-to-Copper Clearance: The Two Numbers That Decide Plating Yield

Aspect ratio is board thickness divided by finished hole diameter. A 1.6mm board with a 0.2mm hole has an aspect ratio of 8:1. As a practical ceiling, mechanical through-holes hold up reasonably well to about 10:1; beyond that, plating solution struggles to exchange fast enough at the center of the barrel, and you get thin copper or voids that only show up on cross-section, usually after the board has already failed electrical test.

Drill-to-copper clearance is the distance from the edge of a drilled hole to the nearest copper feature that is not meant to connect to it. Too tight, and you risk breakout or a short during plating; too generous, and you waste board real estate you did not need to lose. A commonly used minimum is around 0.2mm (8 mil), built from your required annular ring plus solder mask dam clearance, but tighter values are achievable on advanced HDI processes if your fab's registration tolerance supports it. Ask for the fab's actual achievable number rather than assuming a textbook figure, because this is one of the values that varies the most between mechanical drilling and laser-drilled microvia processes.

Positional Accuracy: What the Numbers on a Capability Sheet Actually Mean

A capability sheet listing ±0.02mm hole position accuracy is describing panel-level positional deviation, driven by the CNC drilling platform's control system and single-axis positioning precision, commonly in the ±0.005mm range on modern FANUC-controlled drilling equipment. That single-axis number compounds across X and Y travel and across every registration step between layers, imaging, and lamination, which is why the achievable finished-hole tolerance on a full multilayer board sits closer to ±0.08mm rather than the single-axis spec alone.

The practical implication for your design: on a tight annular ring or a fine-pitch BGA fan-out, do not size your pad purely against the drill's advertised accuracy. Size it against the finished, stacked-up tolerance your fab will actually hold across the whole panel, and confirm that number in DFM review rather than assuming the best-case single-axis figure applies end to end.

Step-by-Step: The PCB Drilling Process Flow

1. Panel preparation. Laminated panels are stacked with an entry sheet on top (usually aluminum, to reduce entry burr and dissipate heat) and a backing board underneath to reduce exit burr and protect the machine bed.

2. Program load and datum setup. The drill program, generated from the Gerber and drill files, is loaded, and the panel is registered to fiducial or tooling holes so every subsequent hole lands relative to a fixed datum, not relative to the raw panel edge.

3. Test drilling. A small sample run verifies hole size, position, and wall quality before committing the full panel.

4. Production drilling. Holes are cut per the program, mechanically or by laser depending on hole class, with tool changes scheduled to match drill-bit wear life for the material in use.

5. Desmear. Heat from mechanical drilling melts a thin layer of resin onto the hole wall. A chemical desmear step removes it; skipping or shortcutting this step is one of the more common causes of intermittent conductivity failure after plating.

6. Deburring. Copper burrs raised at hole entry and exit during drilling are mechanically removed.

7. Inspection. Hole size, position, and wall quality are checked against the drill table before the panel moves on to plating.

Common PCB Drilling Defects and How to Actually Prevent Them

• Resin smear. Melted resin coats the hole wall during mechanical drilling and, if not fully removed in desmear, blocks the copper-to-copper connection at inner layers. Root cause is usually excessive drill speed or a dull bit generating too much frictional heat; the fix is spindle speed control matched to material and a verified desmear cycle, not a more aggressive desmear workaround after the fact.

• Nailheading. Inner-layer copper bends or deforms at the hole edge under drill pressure, leaving an uneven surface that plates unevenly. This points to drill parameter mismatch for that layer's copper weight, not a plating-line problem, even though it often surfaces during plating inspection.

• Breakout. The drilled hole shifts enough that it partially misses its intended copper pad or annular ring. This is almost always a registration or panel-shift issue upstream of drilling itself, not a drill-bit problem, so re-drilling with a tighter program rarely fixes a recurring case.

• Barrel cracking. Usually thermal stress from repeated reflow cycles acting on a hole that already had marginal aspect ratio or thin wall plating. Preventing it starts at the design stage by keeping aspect ratio inside the 10:1 guideline, not by adding plating thickness after the fact.

• Delamination around the hole. Excessive drilling heat or a poor entry/exit backing setup can separate layers locally around the barrel. Laser drilling, being non-contact, essentially eliminates this failure mode for the holes it can reach, which is one more reason to route high-value microvias to laser drilling instead of pushing mechanical drilling below its practical size floor.

How to Choose Between Mechanical, Laser, and Back Drilling for Your Board

• Standard through-hole components and vias down to about 0.3mm on a thicker board, or 0.15mm on a thin one: mechanical drilling, full stop. It is cheaper and it is the only method that reaches full panel thickness economically.

• Fine-pitch BGA escape and microvia interconnects on an HDI stack-up: laser drilling. Trying to push mechanical drilling below its practical floor on a dense board is how designers end up with breakout and inconsistent plating.

• High-speed or high-frequency layers with long unused via stubs: back drilling. Removing the stub with a controlled-depth redrill after the primary hole is plated is what actually improves signal integrity here, not switching finish or adjusting trace geometry alone.

• Large mounting or mechanical fastening holes, up to roughly 6.3mm: mechanical drilling with NPTH specification, since these carry no electrical function and plating them adds cost with no benefit.

• Non-round mounting cutouts or card-edge slots: CNC milling or a slotted drill program rather than a single round hole, specified explicitly on the fab drawing to avoid a mechanical drill defaulting to a round interpretation.

DFM Checklist: Confirm This Before You Submit Your Drill File

• Every hole is explicitly tagged PTH or NPTH in the drill file, matching the fab drawing.

• Minimum via size is checked against your actual board thickness and copper weight, not against a generic spec-sheet minimum.

• Aspect ratio on your smallest, deepest hole stays at or below 10:1 for mechanical vias.

• Drill-to-copper clearance meets or exceeds your annular ring plus solder mask dam requirement everywhere on the board, not just on the majority of nets.

• Any hole count or size variation that is not functionally necessary has been consolidated, since every unique drill size adds a tool change and cost.

• Back-drill requirements, if any, are called out with target stub length, not left implicit.

• Fiducial and tooling holes are placed and sized per your fab's stated requirements, not assumed from a template.

Conclusion

PCB drilling looks like a simple mechanical step until you are the one troubleshooting a failed cross-section six weeks into production. The variables that actually matter, aspect ratio, drill-to-copper clearance, and the thickness-dependent minimum hole size most spec sheets leave out, are the ones worth confirming with your fab before your drill file is final, not after your first article inspection comes back with a hold.

Frequently Asked Questions

What is the smallest hole a PCB manufacturer can drill?

Mechanical drilling typically reaches down to about 0.15mm in standard production, though board thickness and copper weight push that floor higher on thicker or heavy-copper boards. Laser drilling for HDI microvias goes smaller, down to roughly 0.1mm or less on advanced processes.

Why does my minimum via size change based on board thickness?

Because aspect ratio, the ratio of hole depth to diameter, has to stay within a range that plating chemistry can actually fill evenly. A hole that is fine on a 1mm board can be undersized for reliable plating on a 2mm board of the same diameter.

What is the difference between a via and a through-hole?

A via is a plated hole used only to connect layers electrically; it never holds a component lead. A through-hole component hole does both jobs at once, connecting layers and mechanically anchoring a component lead.

Does PCB drilling cause delamination?

It can, usually from excessive drilling heat or poor entry and backing sheet setup during mechanical drilling. Laser drilling, being non-contact, avoids this failure mode for the holes it is capable of reaching.

Can one fabricator handle both mechanical and laser drilling on the same board?

Yes, and for mixed designs, a board combining standard through-holes with an HDI microvia section, it should be run as a single coordinated job rather than split across two vendors. PCBgogo runs both processes in-house on the same production line, which keeps registration between the mechanically drilled and laser-drilled sections consistent instead of depending on two separate panels lining up after the fact.
